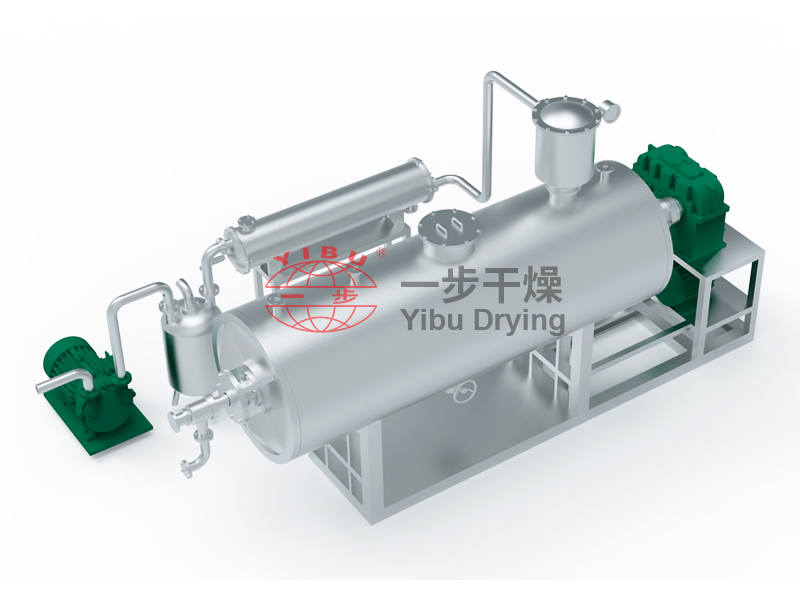

Vacuum Rotary Drum Dryer

The vacuum rotary drum dryer is designed for pulpy, paste-like mixtures and powders that are thermosensitive and must be dried at lower temperatures.

Request a Quote

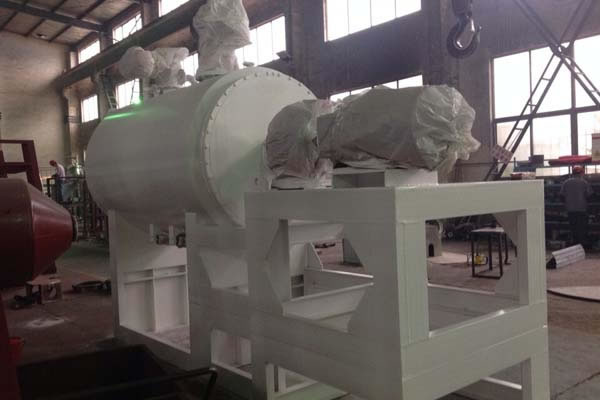

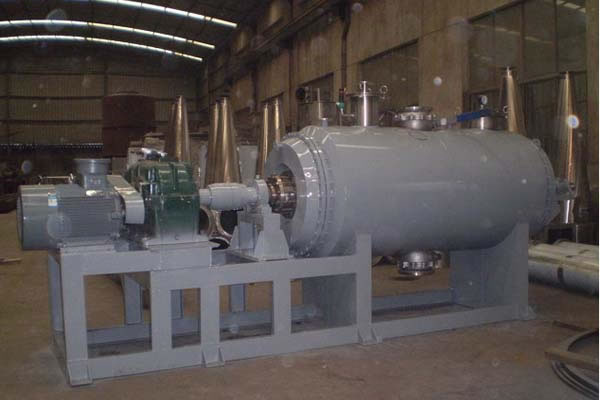

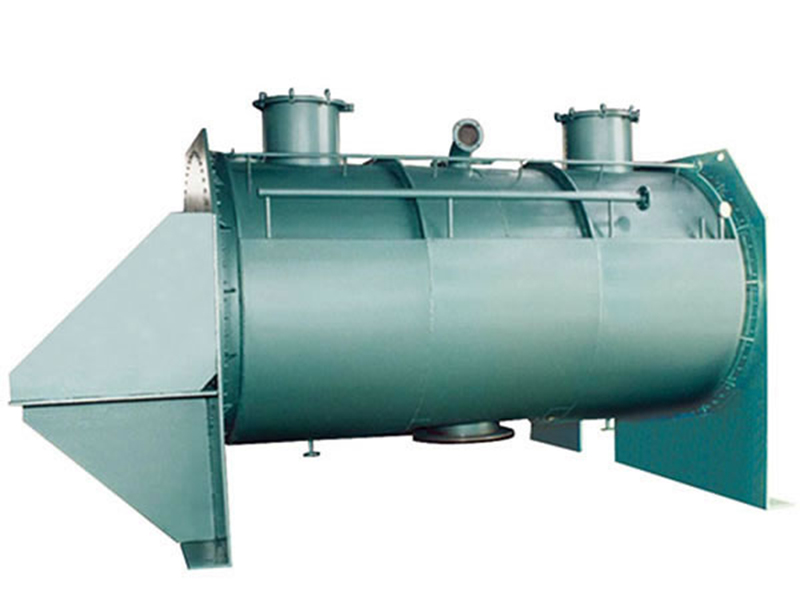

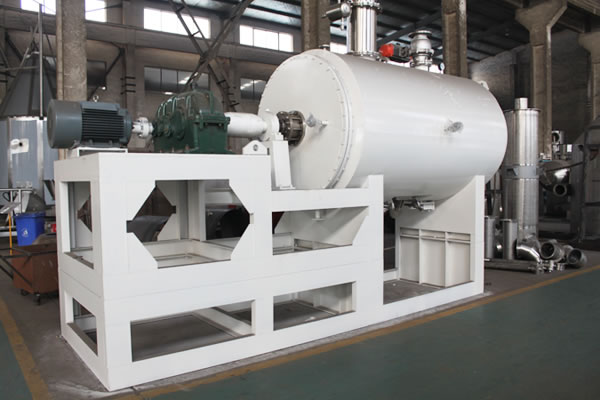

Other Detailed Images

Parameters

Items	Unit	ZPD-500	ZPD-750	ZPD-1000	ZPD-1500	ZPD-2000	ZPD-3000	ZPD-5000
Working volume	L	300	450	600	900	1200	1800	3000
Inner wall diameter	Mm	Ф600×1500	Ф800×1500	Ф800×2000	Ф1000×2000	Ф1000×2600	Ф1200×2600	Ф1400×3400
Mixing speed	Rpm	5-25		5-12		5
Power	Kw	4	5.5	5.5	7.5	11	15	22
Design pressure of jacketed vessel	Mpa	≤ 0.3
Pressure in the cylinder	MPa	-0.09 ~ -0.096

Features

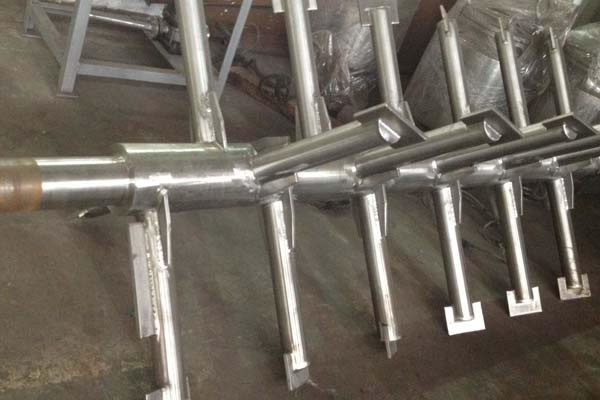

It is a batch-type vacuum dryer that effectively evaporates moisture from wet material via heat transmission. A stirrer will remove material on the hot surface to forma cyclical flow.
The drying equipment features a large heating surface for high efficiency.
