Vacuum Tray Dryer

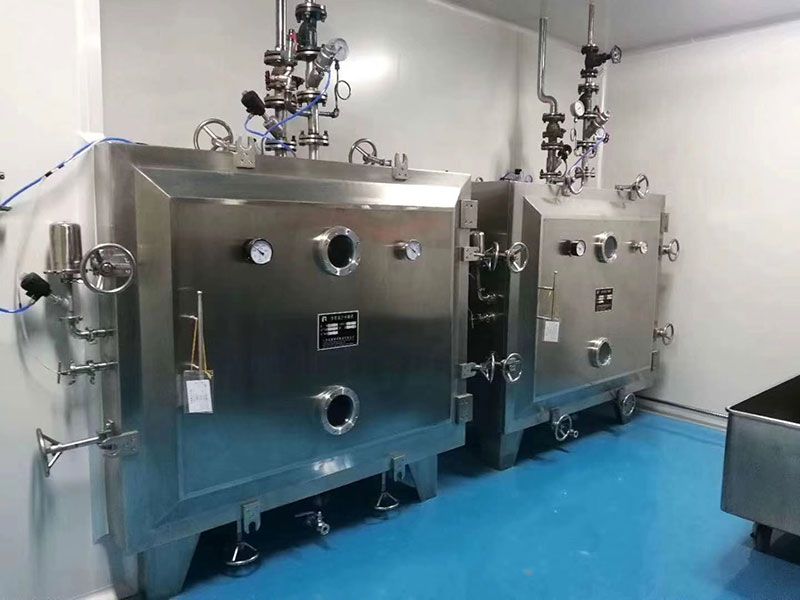

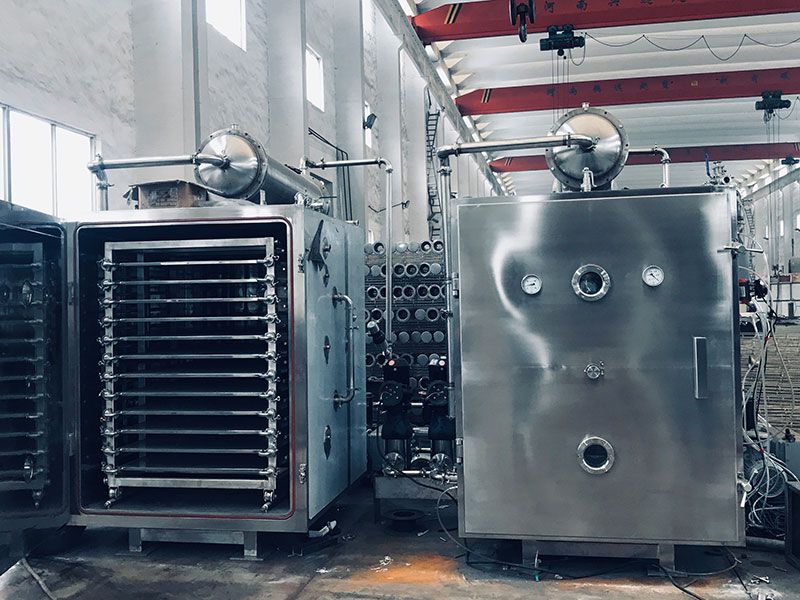

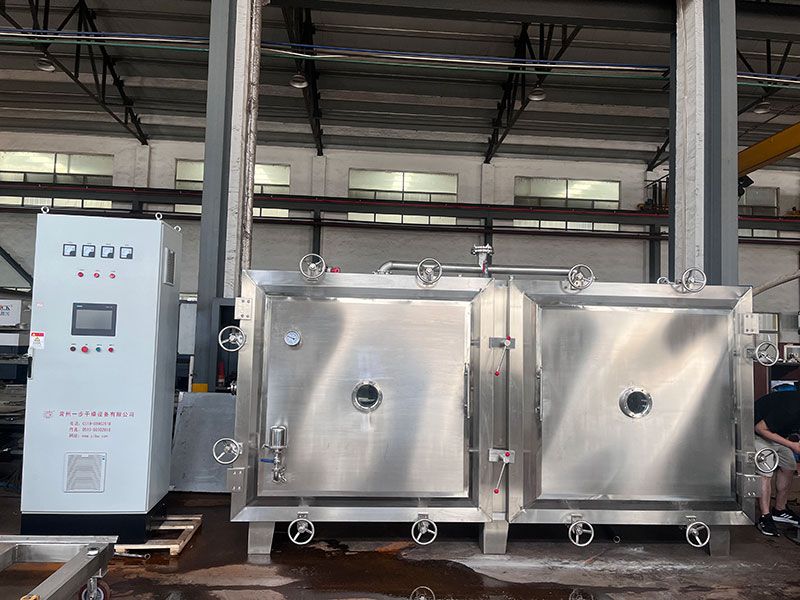

YZG/FZG Series Vacuum Tray Dryer

Vacuum tray drying offers an effective solution for handling materials that are highly sensitive to temperature fluctuations. The process ensures that delicate products, such as pharmaceuticals, chemicals, and specialty foods, are dried under controlled conditions to maintain their integrity. By lowering the boiling point of liquids, the drying system allows for efficient evaporation at reduced temperatures, making it ideal for applications that require gentle processing.

Request a Quote

Features

The vacuum environment reduces the boiling point of liquids, enabling faster heat transfer and minimizing the energy needed for evaporation
Designed to use low-pressure steam or waste heat, ensuring minimal heat loss and maximizing energy efficiency throughout the drying process
Sterilization can be performed before drying, and the entire process is sealed to prevent contamination, meeting the strict hygiene standards required in pharmaceutical and food industries
The static drying method ensures that the material’s structure remains intact, which is essential for products that cannot tolerate mechanical stress or temperature fluctuations

Specifications

Model	YZG-600	YZG-1000	YZG-1400	FZG-8	FZG-15	FZG-20	FZG-30	FZG-45
Internal dimensions (mm)	Ø600×976	Ø1000×1527	Ø1400×2054	1140×890×1400	1500×1220×1400	1500×1580×1400	3200×1220×1400	3200×1220×1700
External dimensions (mm)	1153×810×1020	1740×1226×1385	2386×1657×1800	1580×1203×1924	2060×1513×1924	2060×1883×1924	3760×1513×1924	3760×1513×2224
Number of shelves	4	6	8	8	8	8	8	12
Distance between shelves (mm)	81	98	102	122	122	122	122	102
Tray size (mm)	310×600×45	640×460×45
Number of trays	4	12	32	16	32	48	64	96
Drying capacity (kg)	5	30	60-80	30-40	60-80	100-120	130-150	200-240
Pressure inside pipe & shelf (Mpa)	≤0.784
Shelf temperature (℃)	35-150
Vacuum degree of non-load drying chamber (Mpa)	-0.09-0.096
Vacuum pump model (power)	SK-1.5(3kW)	SK-3(5.5kW)	SK-6(11kW)	SK-3(5.5kW)	SK-6(11kW)	SK-6(11kW)	SK-12(18.5kW)	SK-12(18.5kW)
Weight (kg)	400	900	1400	1400	2300	2800	3500	4800
